Silicone Rubber Heaters

Silicone flexible heating

Product Description:

Silicone rubber heaters produced by Yuheng are extremely thin, light and flexible. And the heaters can transfer heat to any required place. In processing, it can improve heat transfer, accelerate temperature rising and reduce power need. Yuheng Silicone Rubber Heaters are available as wire wound or etched foil. Wire wound elements consist of the resistance wire wound on a fiberglass cord for support and stability. Etched foil heaters are made with a thin metal foil (.001”) as the resistance element.

Product Description

Silicone rubber heaters produced by Yuheng are extremely thin, light and flexible. And the heaters can transfer heat to any required place. In processing, it can improve heat transfer, accelerate temperature rising and reduce power need. Yuheng Silicone Rubber Heaters are available as wire wound or etched foil. Wire wound elements consist of the resistance wire wound on a fiberglass cord for support and stability. Etched foil heaters are made with a thin metal foil (.001”) as the resistance element.

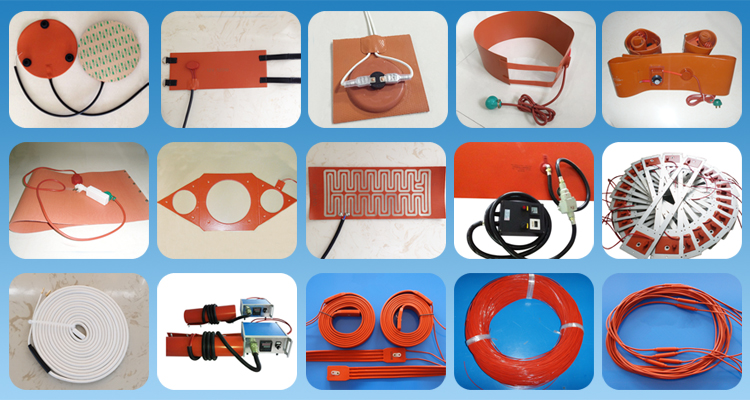

silicone heater.jpg

Technical Parameters

Rated Power

0.2W-1.5W/cm²

Lead Length

300mm-10000mm

Rated Voltage

12V—600V

Wire Tension

15N×15N

Maximum size

10000mm—12000mm

Minimum size

20mm×20mm

Ambient Temperature

--60-----230℃

Temperature

Max 250℃

Thickness

1.5mm—4mm

Withstand voltage

1.5KV

Insulation Resistance

≥5MΩ

Size Tolerance

±0.5﹪

Power Tolerance

±5﹪

Lead Type

Silicone,Teflon

Options

Sensor:TC-K   TC-J    Pt100    Pt1000
Insulation Sponge Thickness:5mm   7mm
Adhesive:3M Brand
Controller:Digital  Dial
Built-in Thermostat:10℃ to 230℃
Thermistor:NTC 10K    NTC100K

Installation:
Boot hooks and lace
D Rings
Snap fasteners
Springs
Velcro
